Tomcat

• https://tomcat.apache.org
• 서블릿 컨테이너 표준 구현 서버
• JAVA_HOME 환경 변수 필요

Run

textCopy
bin/startup.sh
bin\startup.bat

Folder

• conf
  • server.xml
• webapps
  • ROOT.war
• Maven folder structure vs. WebContent

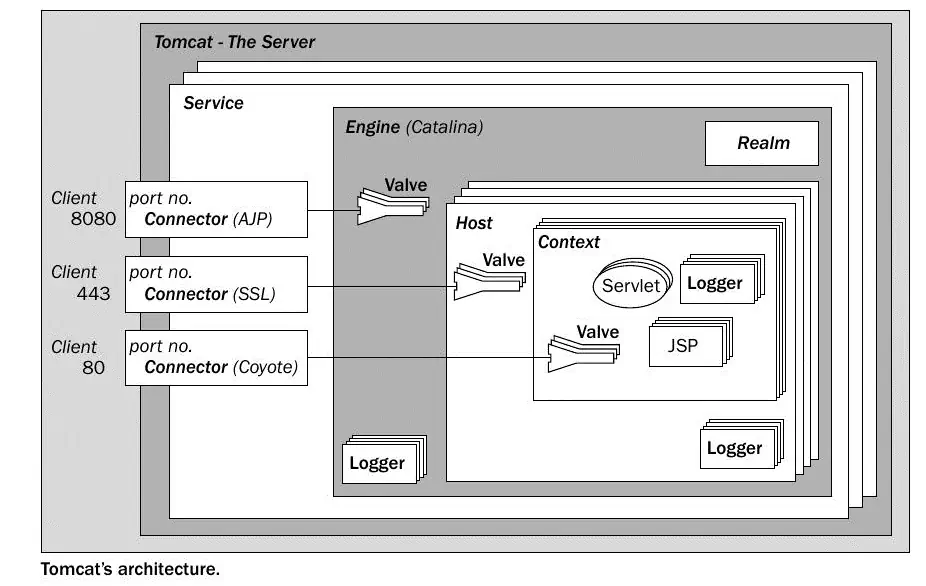

Tomcat Architecture

Eclipse(STS) Tomcat Tip

• Server Options
  • Check Serve modules without publishing
  • application.getRealPath("/")
• External Web Browser
• Disable all validations

SSL

• http://tomcat.apache.org/tomcat-9.0-doc/ssl-howto.html

bashCopy
keytool -genkey -alias tomcat -keyalg RSA -keystore ~/.ssh/okdevtv.keystore

• conf/server.xml

xmlCopy
<Connector
           protocol="org.apache.coyote.http11.Http11NioProtocol"
           port="8443" maxThreads="200"
           scheme="https" secure="true" SSLEnabled="true"
           keystoreFile="${user.home}/.ssh/okdevtv.keystore" keystorePass="okpassokpass"
           clientAuth="false" sslProtocol="TLS"/>

• check

textCopy
curl https://localhost:8443 -k

Sharing Session

conf/context.xml

xmlCopy
<Context sessionCookiePath="/">

• clear cookie and test
• checker.jsp in each webapp

jspCopy
<%@ page language="java" contentType="text/html; charset=utf-8" pageEncoding="utf-8"%>
<!DOCTYPE html>
<html lang="ko">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Checker</title>
</head>
<body>
  <b>context path</b> : <%= application.getContextPath() %><hr />
  <b>sesseion id</b> : <%= session.getId() %><hr />
  <b>cookie string</b> : <%= request.getHeader("cookie") %>
</body>
</html>

ref

• http://kenu.github.io/tomcat70/docs/
